As Shop Manager of Carnegie Mellon Racing, it's my joy and responsibility to ensure that our manufacturing spaces are organized and safe at all times. Due to a multitude of new equipment arriving periodically during the 2023-24 academic school year, I felt it necessary to create a virtual and fully adjustable layout of our main two shops so that the areas could be rearranged to make space for the new equipment.

​

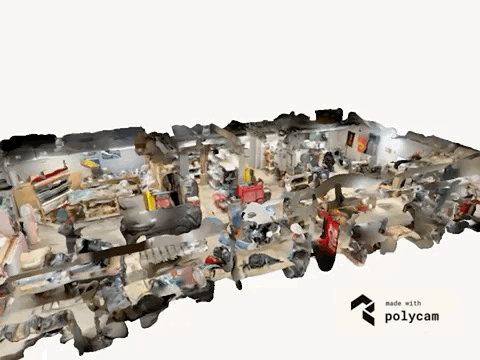

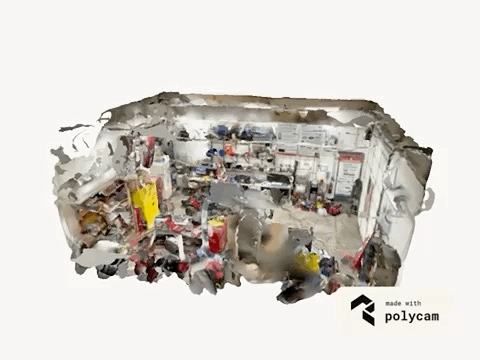

The first task was to get an accurate scan of the entire space which I was able to accomplish using Polycam (a Lidar scanning app) on my iPhone. From there, I used a tape measure to find the dimensions of every major object in each shop. I then used the recorded measurements of the space from the Polycam file as well as my own personal observations to construct a Solidworks model for each shop. These files now allow us as a team to better plan for future shop adjustments and have a better understanding of our spaces as a whole.
